Exploratory Data Analysis with Plotly

Melbourne Python Users Group 6 June 2016

Jiun Siew & Ed Schofield

Overview

  1. Front matter
  2. Motivating example
  3. Introducing Plotly
  4. WOWs & WOEs

Introduction and Objective

  • Introduction

    • Engineer in signal processing
    • Worked in forecasting (financial, energy, propensity)
    • Now working in Hitwise (predictive modelling)

  • Objective

    • A good idea where Plotly might be beneficial for exploratory data analysis
    • Some interesting facts about the NY Philharmonic Orchestra

Disclaimer

  • No affiliation with Plotly
  • Developed with R+RStudio environment (Viewer pane)

Motivating Example

The (simplified) exploratory data analysis process:

rawData <- get_data_from_somewhere(dataSource)   # dataSource = SQL/csv/MapReduce

while (i_have_found_something = FALSE){
  cleanedData <- clean_data(rawData)        # yuck
  df <- do_other_stuff(cleanedData)         # transform, model, summarise
  insights <- visualise(df)                 # look at the pretty colours

  if (insights > significant_value){
    ## EUREKA!!!
    i_have_found_something = TRUE
  }
}

NY Philharmonic Orchestra

  • NY Philharmonic Orchestra's performance history from December 1842
  • Publicly available on github
  • Extracted (from XML) composer, date, location and programID
## Source: local data frame [8 x 3]
##
##   programID       date  composer
##       (int)     (date)     (chr)
## 1      3853 1842-12-07 Beethoven
## 2      3853 1842-12-07     Weber
## 3      3853 1842-12-07    Hummel
## 4      3853 1842-12-07
## 5      3853 1842-12-07     Weber
## 6      3853 1842-12-07   Rossini
## 7      3853 1842-12-07 Beethoven
## 8      3853 1842-12-07    Mozart

Explore: Summary

## Classes 'tbl_df' and 'data.frame':   82311 obs. of  3 variables:
##  $ programID: int  3853 3853 3853 3853 3853 3853 3853 3853 3853 5178 ...
##  $ date     : Date, format: "1842-12-07" "1842-12-07" ...
##  $ composer : chr  "Beethoven" "Weber" "Hummel" "" ...

##    programID            date              composer
##  Min.   :      1   Min.   :1842-12-07   Length:82311
##  1st Qu.:   3647   1st Qu.:1926-12-09   Class :character
##  Median :   7292   Median :1950-03-18   Mode  :character
##  Mean   :  17063   Mean   :1953-09-15
##  3rd Qu.:  10803   3rd Qu.:1982-02-25
##  Max.   :9913550   Max.   :2016-03-19
  • How has the number of performances trended over time?
  • Who are the composers with the highest number of performances?

Explore: Visuals - Time Trend

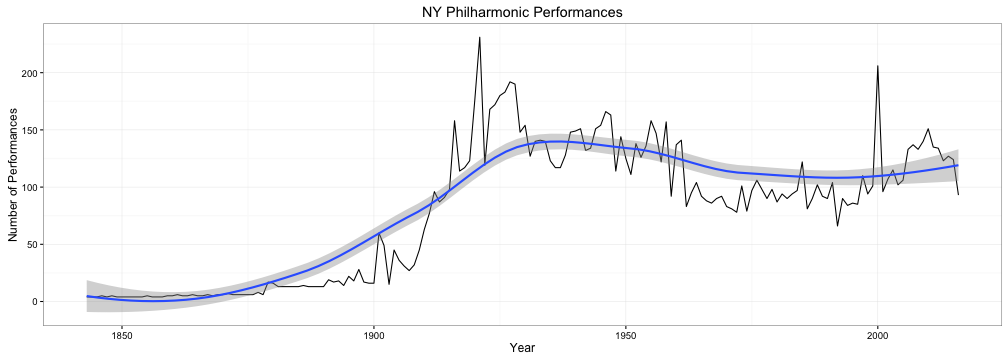

Simple time-series with loess fit:

plot of chunk unnamed-chunk-4

  • What year does performances pick up?
  • What was the maximum number of performances ever done in a single year?

Explore: Visual - Top N Most Performed Composers

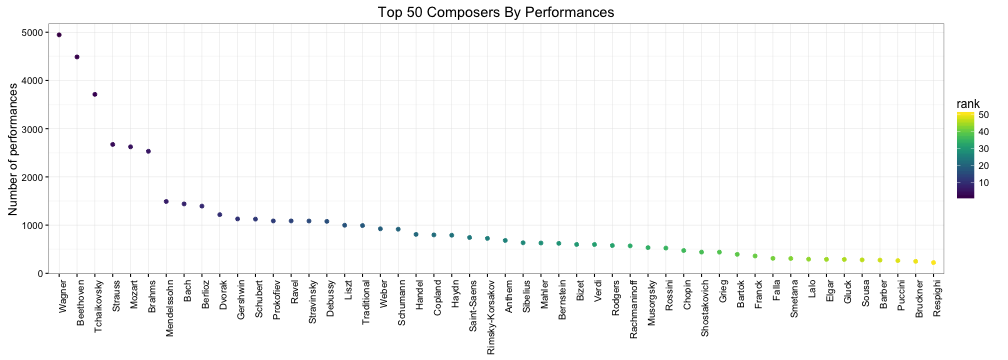

Ordered scatter type plot:

plot of chunk unnamed-chunk-5

  • How many times has a work by Rachmaninov been performed?
  • What's the difference in rank between Stravinsky and Rimsky-Korsakov?

I wish I could...

  • Get a good looking plot without a lot of code
  • Interact with my data

Introducing Plotly: Time series

Introducing Plotly: Top Composers

More formally

  • What is it?

    • "Built on top of d3.js and stack.gl, plotly.js is a high-level, declarative charting library. plotly.js ships with 20 chart types, including 3D charts, statistical graphs, and SVG maps." See link
    • open source
    • API's to R, Python, Matlab

  • plotly package for R

    • Plotly for R is an interactive, browser-based charting library built on the open source JavaScript graphing library, plotly.js. It works entirely locally, through the HTML widgets framework.

Goodbye Hadley...we're breaking up

  • How does this compare to ggplot2?
  • Do we really need both?
  • It depends...

Code comparison - Time series

# ggplot way
ggplot(nPerfByYear, aes(x = date.yr, y = nPerf)) +
  geom_line() +
  theme_bw() +
  stat_smooth() +
  ggtitle("NY Philharmonic Performances") +
  ylab("Number of Performances") +
  xlab("Year")

# plotly
p <- plot_ly(nPerfByYear,
             x = date.yr,
             y = nPerf,
             name = "Total Performances")
fitted.val <- fitted(loess(nPerf ~ lubridate::year(date.yr), data = nPerfByYear))
p <- p %>% add_trace(y = fitted.val, x = date.yr, name = "Loess Fit")
  • ggplot's stat_smooth makes it a bit easier to put in trend lines with error bands
  • plotly likes %>%

Code comparison - Ordered scatter plot

# ggplot way
n <-  50
ggplot(countsByComposer[1:n, ],
       aes(x = reorder(composer, -nPerf), y = nPerf)) +
  geom_point(aes(colour = rank)) +
  scale_color_viridis() +
  theme_bw() +
  theme(axis.text.x = element_text(angle = 90, hjust = 1),
        axis.title.x=element_blank()) +
  ggtitle(paste0("Top ", n, " Composers By Performances")) +
  ylab("Number of performances")


# plotly
pComposers <- plot_ly(countsByComposer[1:n, ], x = composer, y = nPerf,
        color = rank,
        text = paste("Rank: ", rank),
        mode = "markers")
pComposers
  • ggplot required a few more steps to get it looking like plotly

ggplotly: The best of both worlds

You can also convert a ggplot object directly to a plotly one with ggplotly

# Summarise data
tmpDf <- plotDf.sum %>%
  filter(composer %in% countsByComposer$composer[1:12])

tmpDf$composer.f <- factor(tmpDf$composer,
                           levels = countsByComposer$composer[1:12])

# Define my own coloursheme (from colorbrewer.org)
colorScheme = c('#a6cee3','#1f78b4','#b2df8a','#33a02c',
                '#fb9a99','#e31a1c','#fdbf6f','#ff7f00',
                '#cab2d6','#6a3d9a','#ffff99','#b15928')

# do a facet plot of time series for each composer
pFacet <- ggplot(tmpDf, aes(x = date.yr, y = nPerf)) +
  geom_line(aes(colour = composer)) +
  facet_wrap(~composer.f) +
  theme_bw() +
  ggtitle("NY Philharmonic Performances") +
  ylab("Number of Performances") +  xlab("Year") +
  scale_color_manual(values = colorScheme) +
  theme(legend.position="none")

ggplotly(pFacet)

ggplotly (cont'd)

Other features worth noting -- 3D plots

Other features worth noting -- Maps

Map Plot

# marker styling
m <- list(
  colorbar = list(title = "Number of Performances (log)"),
  size = 8, opacity = 0.8, symbol = 'square'
)

# geo styling
g <- list(
  projection = list(type = 'natural earth'),
  showcountries = TRUE,
  showland = TRUE,
  landcolor = toRGB("gray95"),
  subunitcolor = toRGB("gray85"),
  countrycolor = toRGB("gray85"),
  countrywidth = 0.5,
  subunitwidth = 1
)

pMap <- plot_ly(locationSummary, lat = lat, lon = lon, text = hoverText, color = nPerf.log,
        type = 'scattergeo', mode = 'markers') %>%
  layout(title = 'NY Philharmonic Performances', geo = g)

Sharing

  • Online via plot.ly
  • As widgets + iframes
# plot the top n
n <- 50
pComposers <- plot_ly(countsByComposer[1:n, ], x = composer, y = nPerf,
        color = rank,
        text = paste("Rank: ", rank),
        mode = "markers")
pComposers
pComposerFid <- "plotly_topComposers.html"
htmlwidgets::saveWidget(as.widget(pComposers), pComposerFid)

<iframe src="plotly_topComposers.html"
        height='75%' width="100%">
</iframe>

Other types of charts

  • Heatmaps
  • Bar charts
  • Statistical plots (boxplots, histograms)
  • Even pie charts!!
  • Polar charts
  • etc, etc, etc...

Summary: WOWs

  • Interactivity is wonderful
  • Plotly defaults are pretty nice \(\rightarrow\) not too much work for something aesthetically very pleasing
  • One package with lots of versatility (3D surface, heatmaps, etc...)
  • ggplotly bridges ggplot and plotly
  • Multiple API's mean you can have various languages with consistent looking plots

Summary: WOEs

  • Syntax is not like the grammar of graphics, but pretty good
  • Does crash from time to time (not sure why)
  • ggplotly works pretty well usually, but can have issues with many facets or lots of aes features \(\rightarrow\) do you really need to facet so much?
  • Web based, so sharing in traditional outlets (print, reports etc) is a bit more tricky

Questions?

Thanks.
